Internal Reference:
560-318

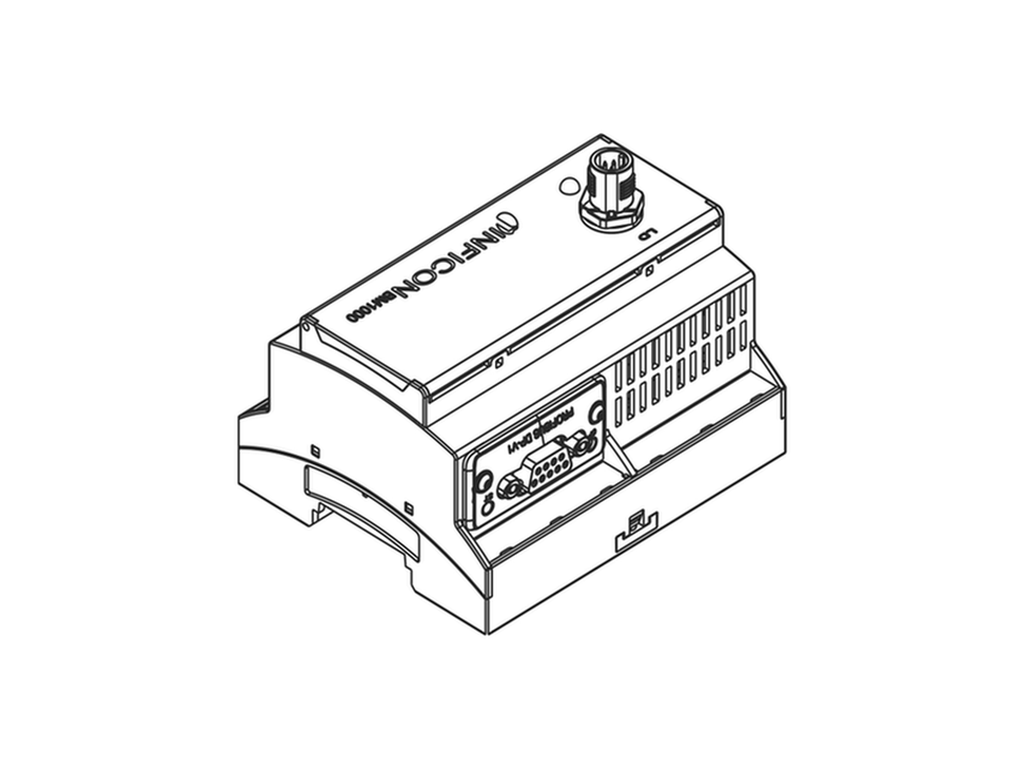

Fieldbus module for the LDS3000 leak detector module — available for PROFIBUS, PROFINET IO, DeviceNet and EtherNet/IP.
Connecting a leak test system to the plant control system — the leak detector module reports and is controlled over the fieldbus.
| Property | Value |
|---|---|
| For | LDS3000, LDS3000 AQ, LDS800, XL3000flex |
| Fieldbus | PROFIBUS, PROFINET IO, DeviceNet, EtherNet/IP |
| Power supply | 24 V DC |
| Power consumption | < 3 VA |
| Ambient temperature | 5 … 50 °C |
| Dimensions (W × D × H) | 107.6 × 89.7 × 76.6 mm |
| Weight | 0.5 kg |
| Protection class | IP 20 |
| Part number | 560-315 (PROFIBUS), 560-316 (PROFINET IO), 560-317 (DeviceNet), 560-318 (EtherNet/IP) |
- Sits between the MSB box of the module and the external control system
- Powered with 24 V DC over the same INFICON data cable that carries the communication
- Also used with LDS800, LDS3000 AQ and XL3000flex
